Dashboard Overview

The following is not supported in Tenable FedRAMP Moderate environments. For more information, see the Tenable FedRAMP Product Offering.

You can drill into any dashboard on the Dashboards page to view the dashboard's overview.

To view a dashboard overview:

1. Access the Dashboards page.

2. Click the tile of the dashboard for which you want to view the overview.

   The dashboard overview appears.



On the dashboard overview page, you can:

• View the dashboard's name.

• View the owner of the dashboard.

• In the upper-right corner, use the date range drop-down to select the date range for which you want to view data on the dashboard.

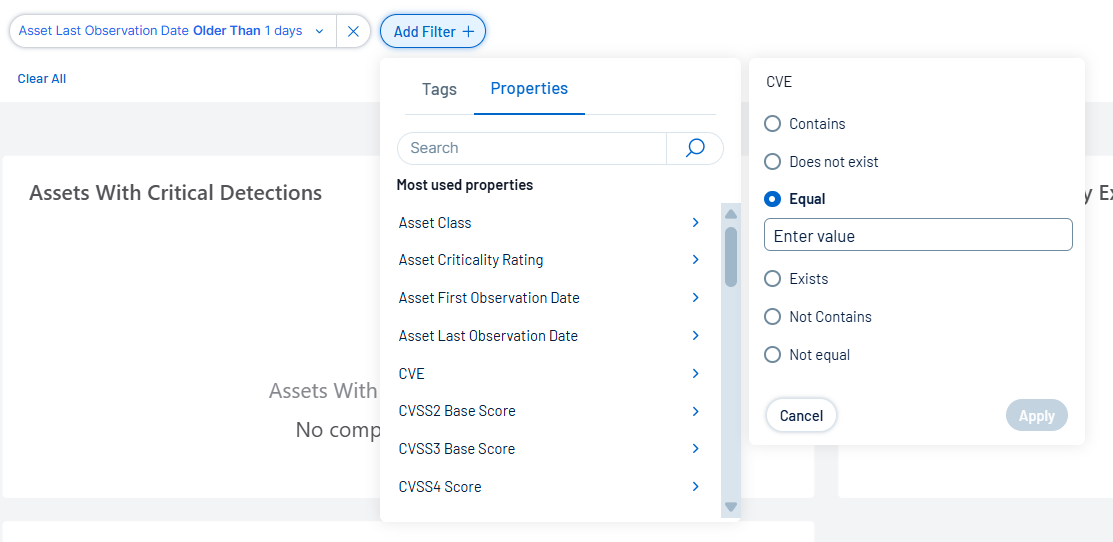

• Click the Filters button to apply one or more filters to the dashboard overview.

  The Filters pane appears.



  1. Expand any filter drop-down to apply filters of that type. For example, expand the Asset Type drop-down to filter the dashboard overview by a specific type of asset.

     Tip: Tenable Exposure Management groups filters based on whether they are applied to the whole dashboard or an individual widget. Applied filters appear in blue, so you can easily identify which filters are currently affecting your dashboard and widget data.

• Expand the Actions drop-down to view dashboard options:

  • Export — Click to export the dashboard for sharing:

    A menu appears.

    1. Select the format in which you want to export the dashboard.

       Tenable Exposure Management sends the exported file to your customer email address.

  • Create a Copy — Click to create a copy of the dashboard:

    The Create a copy window appears.

    1. In the Dashboard Name text box, type a name for the copied dashboard. By default, Tenable prepends "copy of" to the original dashboard name.

    2. (Optional) In the Description text box, edit the dashboard description.

    3. In the dashboard privacy section, select whether you want the dashboard to be Public or Private.

       Note: Public dashboards are visible to all users within your Tenable Exposure Management instance.

    4. Click Create.

       Tenable Exposure Management adds the copy of the dashboard to the Dashboards page.

• View details about the widgets within your dashboard. The data on each widget depends on the type of widget and the configurations applied during creation.

  In the upper-right corner of each widget, you can interact with and manage your dashboard's widgets. These options include, but are not limited to:

  Note: The widget management options depend on the type of widget you're managing. Not all widget types include these options.

  • Hover over the button to view a brief description of the data on the widget.

  • If you've drilled down into a specific data point, click the button to drill back up to the main data within the widget.

  • If you're at the top level of widget data, click the button to turn on drill down mode. Once on, you can click a data point on the graph to drill down into that specific data point for more detailed information.

  • Click the button to drill down to the lowest level of data available on the widget.

  • Click the button to view additional options for viewing and exporting widget data.

  • Click the filter button to view all filters affecting the widget:
