Renew TLS Certificate

This section explains how to renew an existing, expiring, or compromised self-signed/ custom certificate with a newly custom certificate TLS with/No peer verification without altering the component's application code or its configuration for TLS usage.

Generate the Certificate

  • Use a tool such as OpenSSL to create the new certificate.

  • Make sure it includes the correct Subject Alternative Name (SAN) or Common Name (CN) that matches the component’s hostname or IP address.

  • The new certificate must also use a stronger key size and hash algorithm than the old one.

To download the executable file:

  1. Go to the following link to download the executable file (https://uploads.tenable.com/files/cfbd6fcd-d70c-439d-9948-8d2b206f1b84/download).

  2. Download the file.

  3. Save the file to a secure location on your system.

  4. Verify the file integrity by checking its SHA-256 hash: 7B633595AC201046AB006A1EB0427FC0082A72096B5B16F308EDDBEB56EAABD4

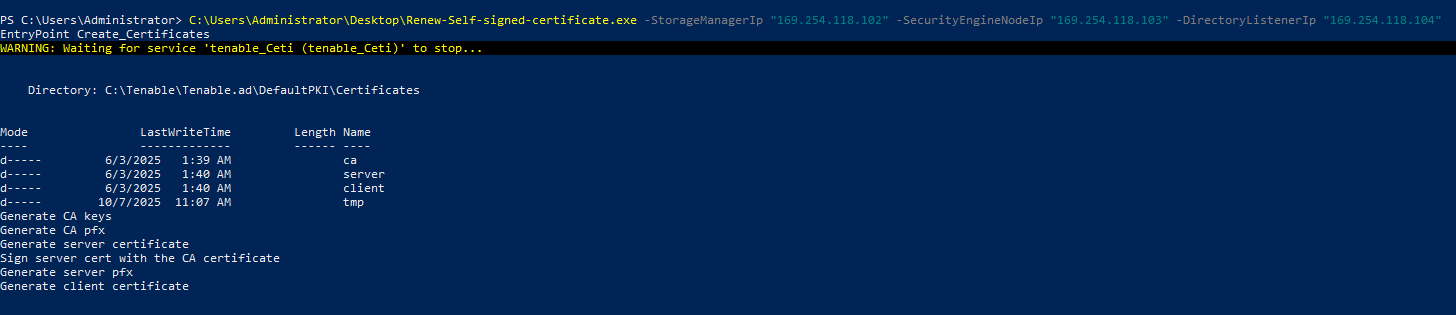

Standard Architecture

To renew the certificate:

  1. Connect to the Storage Manager (SM), Security Engine Node (SEN), and the Directory Listener (DL) servers using an administrator account.

  2. Open a PowerShell terminal as an administrator.

  3. Run the executable file with the following parameters.

    Copy
    PS C:\> .\Renew-Custom-Certificate.exe -Tls_Option "CustomWithPeer | CustomNoPeer" -ServerPfxPath "C:\ServerCertificate.pfx" -ServerPfxPassword "pfx password" -CAcrtPath "C:\caCertificate.crt"

  1. PS C:\> .\Renew-Self-signed-certificate.exe -StorageManagerIp "SM host" -SecurityEngineNodeIp "SEN1 Host, SEN2 Host, SEN3 Host, SEN4 Host, SEN5 Host" -DirectoryListenerIp "DL Host"
