Configure the GS Group

Steps

1. In the GigaVUE-OS interface, on the left side bar, select Physical Nodes. The Physical Nodes screen appears.



2. Select the Physical Node you wish to configure. The Overview screen appears.



3. On the left bar, select GigaSMART®. The GS Operations tab appears.

4. On the top navigation bar, select GS Groups. The GS Groups tab appears.

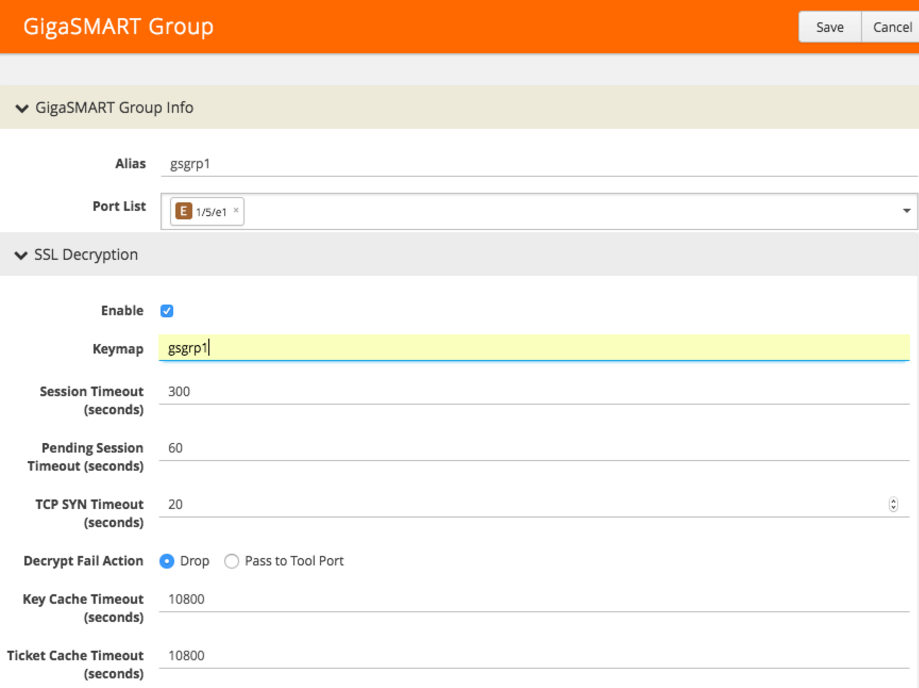

5. In the upper right corner, click the New button. The GS Group page appears.



6. In the GS Group Info section, in the Alias box, enter a name for the group (e.g., gsgrp1).

7. In the Port List drop-down box, select the tool port you created in Configure the Tool Port.

8. In the SSL Decryption section, select the Enable check box.

9. In the Keymap box, enter the alias you set in step 2.

10. In the Decrypt Fail Action row, select either Drop or Pass to Tool Port.

11. In the Non SSL Traffic row, select either Drop or Pass to Tool Port.

12. In the upper right corner of the page, click Save.
